Product Introduction:
Our AM320GPV-3 Micro foam pump is derived from the AM320GPV series. On this basis, we have further adjusted the flow rate and pressure to better adapt to the working environment of the finished products. It is equipped with a 320 carbon brush motor (voltage can be customized as needed) and still adopts the shell electroplating process, which enhances the corrosion resistance and makes it very suitable for humid places with abundant water resources.
The AM320GPV-3 micro foam pump has the following highlights: - Low noise during operation, suitable for places that need to provide a quiet environment such as families or hotels; - Compliant with green environmental protection standards, environmentally friendly and harmless, without adding pressure to the environment; - In addition, it has stable and powerful performance, which can control the output efficiency of foam and liquid to achieve the ideal effect.

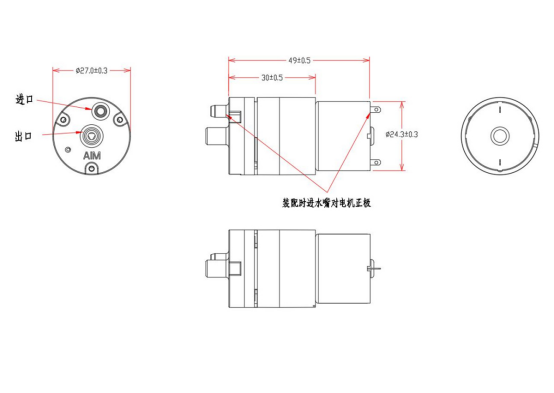

Product size：
Product Parameter Information：
Products model： AM320GPV-3
Rated voltage： 2.8V
Operating voltage： 2.5-3.2V
No-load current： 420-580mA
Vacuum pressure： >25Kpa
Water Flow： >1.6L/Min
No-load noise： 65dB
Fluid usage： Hand Washing Fluid
The product application fields of AM320GPV-3 micro foam pump are as follows: - Swimming pool and SPA equipment: It can be used as a core power component to provide stable pressure for automatic foam generators in swimming pools, accurately control the output of foam. It can not only create rich foam entertainment effects, but also reduce water evaporation and impurity falling into the pool through foam coverage, adapting to humid and water-rich environments like swimming pools. - Food processing cleaning equipment: Used as a foam pump in automatic foam cleaning machines in food workshops, it can accurately adjust the foam concentration and spray force to ensure that the surface of production equipment, conveyor belts, etc. are clean without residue. Due to its environmental protection and harmless characteristics, it will not pollute the food processing environment. - Agricultural atomization irrigation system: It can be used as a foam pump in atomization irrigation equipment in greenhouses. With stable pressure control, it can convert water-fertilizer solution into fine mist droplets for uniform spraying, which can not only accurately control the irrigation volume to save water resources, but also enable crops to absorb nutrients more efficiently. In conclusion, AM320GPV-3 micro foam pump has become an ideal product in various scenarios.
